MACHINE PLATFORMS

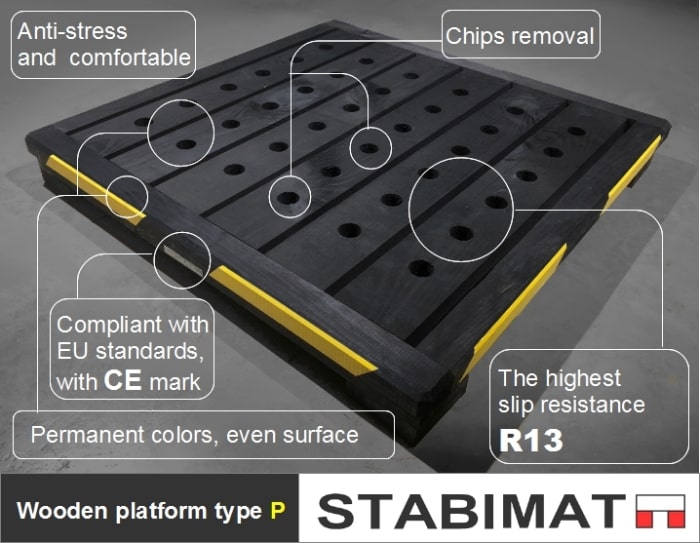

Industrial "P" type platforms for machine tools - purpose


Advantages of industrial wooden floor gratings

work platforms

  • various height of platforms - STABIMAT system enables working platforms with heights ranging from 6 to 15 cm above the hall floor
  • thanks to the solid construction, the platforms are durable, stable and resistant to usage loads
  • platform surface is non-slip, provides good adhesion of footwear and stands out with the highest class of anti-slip R13 - according to DIN 51130
  • in terms of insulation, wooden workshop grates provide a good insulation against cold unheated floors and moisture
  • the color of the platform is clear and warning, increasing the safety of the workplace, and the edge of the platform is clearly marked and clearly visible, which reduces the risk of accident at work, including the fall and stumble of people working on them
  • Thanks to the openwork surface, the processing chips and the dust in the workstation easily fall down under the platform boards, and the spilled liquids (water, oils, emulsions, etc.) easily run down under the working platform
  • the slots and openings in the platform are selected so that the person standing on the platform of the workplace does not feel any unevenness, so that he does not trip on the platform. Platform is stable and even support for the employee, which is important for the safety of employees at the workplace
  • light modular construction of platforms makes it possible to build larger work platforms out of them - the basic module is 75x75 cm
  • platform plates are easy to disassemble and re-assemble on the same or on another workstation with minimal effort and without the need for specialized tools
  • the platforms are comfortable and do not cause tiredness in the legs and are easy to keep clean

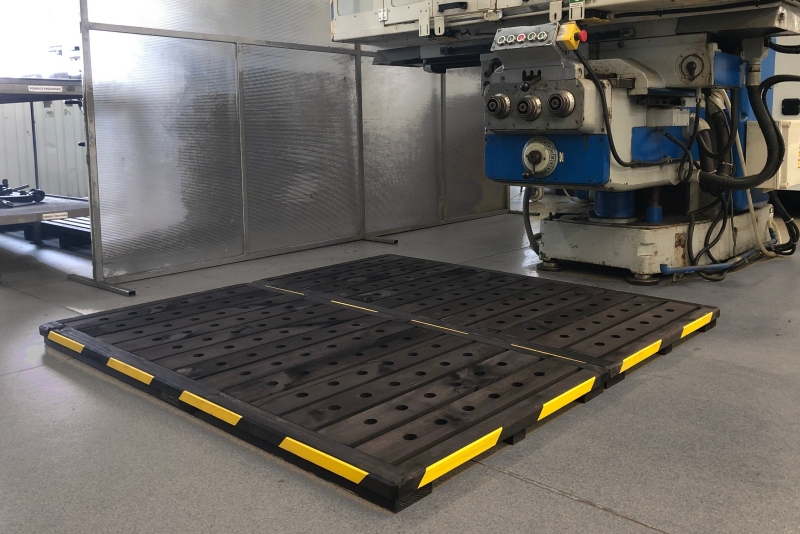

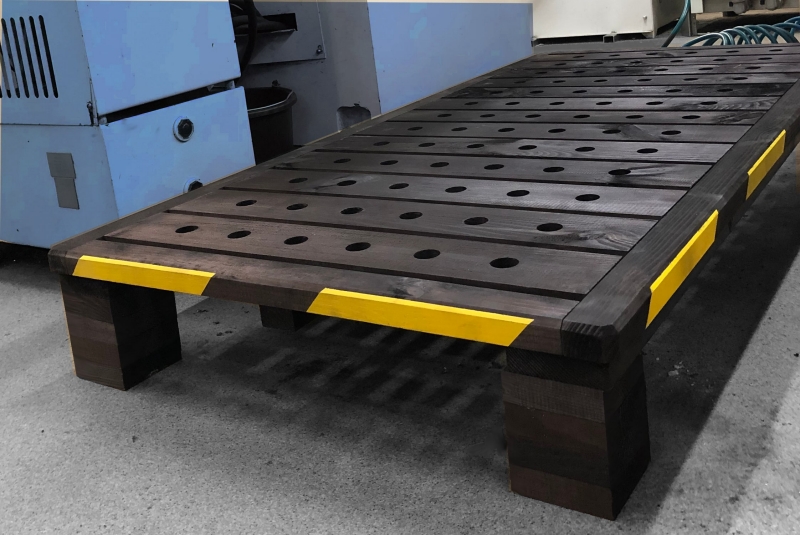

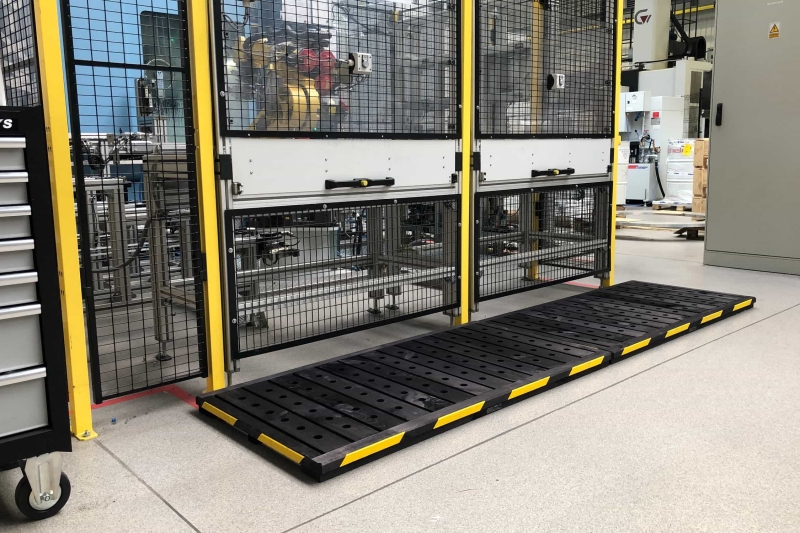

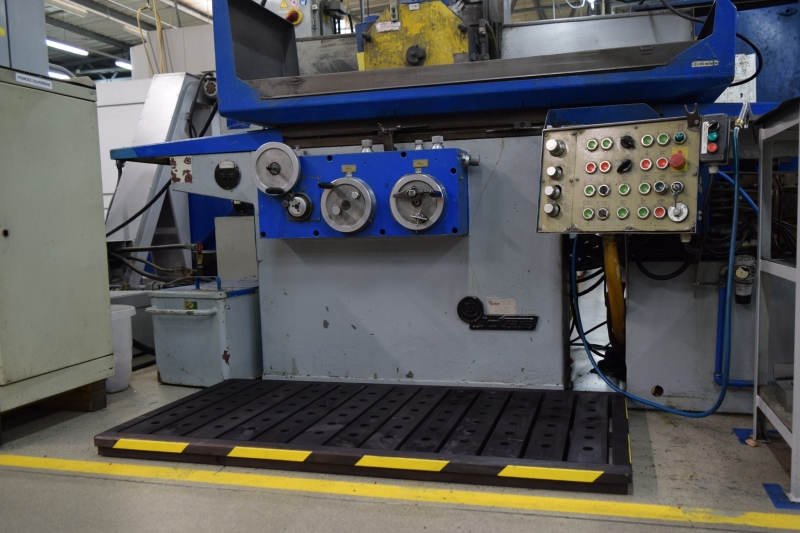

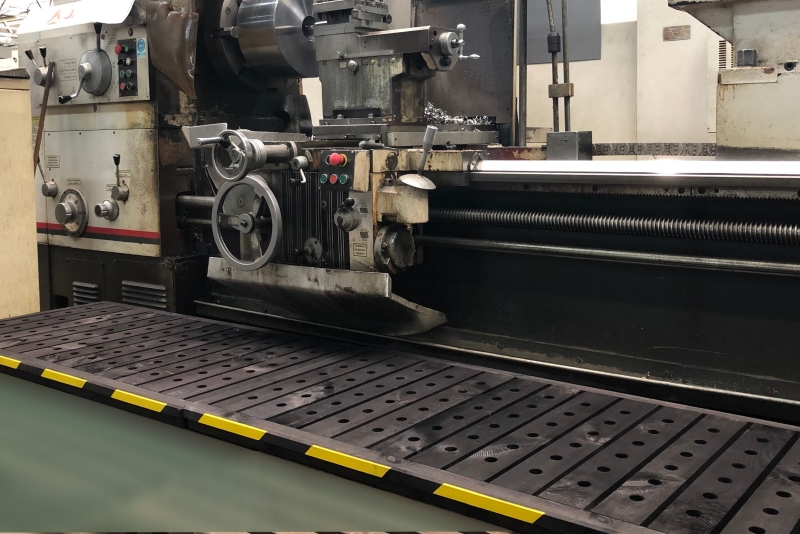

The use of wooden industrial platforms for machine tools

STABIMAT wooden floor platforms are used in the industry, as work floor pads for work stations at machine tools. They work as easy-to-use machine floor grids that increase the safety of employees. STABIMAT wooden machine grids (platforms) can also be used for joining, modernizing and reorganizing workplaces in the vicinity of both old and new machines acquired later and in building integrated production systems.
STABIMAT wooden machine grids (platforms) can also be used for joining, modernizing and reorganizing workplaces in the vicinity of both old and new machines acquired later and in building integrated production systems. The STABIMAT system allows you to perform wooden platforms with a small height of 6 ÷ 15 cm. This is the scope for which the law does not regulate in detail the safety conditions when operating machines and does not require the use of barriers. Nevertheless, the employer before performing the platform should analyze the scope of activities related to machine / machine operation and the risks that may occur on a given position due to falling from the platform or stumbling while climbing the platform. It is also necessary to analyze the number of people at the same time on the single platform while operating the machine - the necessary size of the platform may depend on this. Such an analysis will allow to assess the danger of falling down from the platform, for example when walking or standing at its edge, when moving materials or when two or more people are simultaneously standing on the platform and determining whether it is worth installing barriers to reduce hazards. The platform tiles are wooden, have an anti-slip surface, are easy to assemble and disassemble (one person is enough to assemble), they are stable after assembly and are also easy to keep clean. Thanks to the safety colors used, STABIMAT platforms are clearly visible on the edges, which significantly improves safety at the workplace.
