Machine platforms for machine tools

STABIMAT type "P" machine platforms - standard version


Construction and description of machine platforms

Machine and wooden work platforms for machine tools

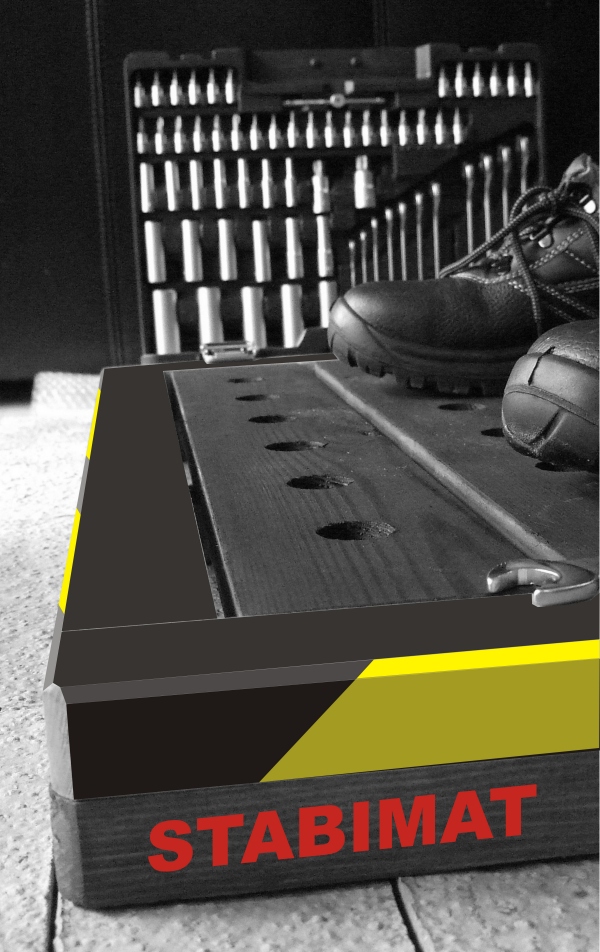

Stabimat wooden floor platforms are workshop floor grates used for machine tool stands. The basic elements of the floor platform in the STABIMAT system are the plates shown in the figures below. The construction of the boards is wooden, and their openwork surface makes them a kind of machine grids. Non-slip texture and openwork surface of the boards ensure very good adhesion of working footwear. Tests carried out by a certified laboratory in accordance with DIN 51130:2014-02 showed that on the R9 ÷ R13 scale, the platform surface has the highest anti-slip class R13. Platform boards have a standard width of 75 cm and a standard height H = 6 cm. The "P" type platforms consist of two elements: P75/6, P150/6. The platforms meet the requirements of the harmonized standard: EN ISO 14122-2:2016-08E and the essential requirements defined by: Directive 2006/42/EC of the European Parliament and of the Council of 17 May 2006 on machinery.


Technical and functional characteristics of machine platforms


Basic working platform P75/6

platforms for machine tools
    P75/6
  • dimensions [AxBxH]: 75x75x6 cm
  • weight: ~12 kg
  • width B = 75 cm
  • height H = 6 cm
  • anti-slip class: R13
  • acceptable loads:
    – continuous: 5,0 kN/m2
    – concentrated: 2,0 kN [20x20cm]

Double working platform P150/6

work platforms
    P150/6
  • dimensions [AxBxH]: 150x75x6cm
  • weight: ~23 kg
  • other parameters as above
